IM Series Infrared Multi Analyzer (Fiber Type)
The IM series is an on-line multi IR wavelength analyzer utilizing infrared absorption technology for measuring product constituent and/or thickness. Signal processing capabilities are built into the compact, Stand-Alone detector unit for easy installation and operation. A maximum of 99 calibration curves can be stored into the detector memory for numerous measurement applications. The detector can be used by itself or connected to a PC/plant control system, as both analog and digital outputs are provided. A remote setting display unit, connectable up to 9 detector units, can be used to set various detecting parameters and also displays measured values. IM Series
TabView Example - Basic From Existing Markup
    Up to 10 wavelengths, able to measure 4 constituents, moisture, film-thickness, organic properties, and coating-thickness in real time.
    Communicate with multi interface, RS-485 (MODBUS), Ethernet (LAN) (option)
    High-speed (28ms) & High-repeatability.
    Multi-calculation function.
    Self-diagnostic function, easy maintenance.
    Conforms to CE standards and IP-65.
    Fiber / Liquid Cell Type
    Model Specification
    IRMA2100 Universal moisture
    IRMA2200 High moisture
    IRMA61-- Multi-component
    IRMA8100 Thickness, coating
    Fiber Optics (Reflection Type)
    Model Specification
    IR-WCRN1.5 1.5m without lens
    IR-WCRC1.5 1.5m with lens
    IR-SCR++.+ Additional length (up to 5m)
    Measuring system Infrared absorption type
    Measuring wavelength Up to 10 wavelengths
    Measuring scope Up to 4 constituents
    Source of light Tungsten lamp
    Measuring distance and measuring diameter ⬚30/200mm or ⬚50/300mm
    Output signal 1) Analog signal: 4 to 20mADC; ±0.2% of full scale (Load resistance: less than 500)
    2) Communications signal: RS-485 MODBUS (STD)
    3) Ethernet (LAN)
    Output renewal cycle 28ms
    Display & setting LED display shows the measurement data and setting value. Various parameters are settable by keypad.
    Computing function Ratio calculation for 2-color or 3-color, and multiple regression calculation.
    Calibration curve number up to 99 curves
    Calibration curve Linear, quadratic, cubic and multiple regression line.
    Calibration curve correction: Linear & quadratic
    Smoothing 0 to 99 seconds, optional setting
    Calibration By checking plate
    Setting detector number Use multi-head then set the detector number by keypad
    Setting channel number Set calibration curve number by keypad
    Self-diagnostic function Display and output alarm by digital communications and/or contact signal
    Input correction Corrects the measured data by external 4 to 20mA DC (1 input)(sample temperature correction, etc.)
    External Di/o Di(contact input), selectable from preset, data-hold, real/ smooth functions.
    Do(contact output), selectable from self-diagnostic function (1b) or upper/ lower limit alarm (1a).
    Ambient temperature range 0 to 50 °C (air cooling is necessary for higher than 45°C)
    Power supply 24V DC
    Power consumption Approx. 30VA
    Connection Terminals connection
    Casing Aluminum casing, drip-proof structure (conforming to IEC529, IP65)
    Weight Approx. 4.3kg
    Mounting Suspension the analyzer uses 4-M8 bolts.
    CE-marking specifications EN61326+A
    Analog output RS-485, Connectable with max.9 detector units
    Analog output 1) Analog signal: 4 to 20mADC; 2 output*
    (Load resistance: less than 500)
    * In the case of multi-head, output from No.1 and No.2 connected detectors.
    2) Communications signal: specified from RS-232C, RS-422A or RS-485.
    Output scaling By numeric key
    Output renewal cycle Communications output: 28ms ´ detector number
    Display 1) Measured data, LED 5-digit
    2) Head No., CH. No., parameter.
    Setting detector number Set detector head No.1 to No.9 by key
    Setting channel number Set calibration curve number by key
    Smoothing time T=0.1 to 99.9 seconds
    Calibration After output checking plate inserted, calibrate by key or external contact.
    Hold/preset Hold or preset the display and output by key or external contact.
    Calibration curve correction Corrects the calibration curve online or linear, quadratic correction.
    External setting Head number, CH. No., Calibration Hold, Preset.
    Alarm function Contact 1 output (HCL) outside of setting-range
    Self-diagnostic Contact 1 output
    Power supply 100 to 240V AC 50/60Hz
    Power consumption max. 15VA
    Working ambient temperature 0 to 50°C
    Casing ABS resin (IP65)
    Mounting Panel-mount type
    Weight Approx. 0.6kg
    Measuring distance and measuring diameter with lens: f25/25mm to f40/100mm
    without lens: f20/15mm to f50/50mm
    Fiber length Standard 1.5m, Max.5m (Reflection type fiber)
    Standard 2m, Max.10m (Transmission type fiber)
    Fiber protection Stainless steel snake tube
    Minimum bending radius R100mm
    Working temperature range 0 to 150°C
    Purge air flow with lens: non air purge
    without lens: 5 to 20NL/min
    Accessory Vertical mounting holder, Flange holder

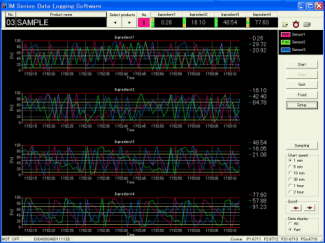

    Main Screen
    Displays measured data, trend and alarm value. Displays 4 constituents on one screen. Save data into specified folder, enable to search or read historical data.

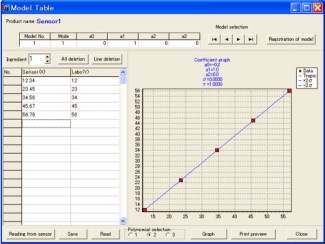

    Create the Calibration Curve
    Creates the calibration curve for new sample, and transmits the calibration curve data to detector.
    PS Sheet IM series PSE-605 Download
