KR3000 Series Graphic Recorder
KR3000 Series are network-compatible paperless recorders with high performance and high operating function employed high visibility 12.1” TFT color LCD display and touch panel operation system. High speed of sampling rate 100ms for 48 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 2GB compact flash card (CF card). As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available. KR3000 Series
TabView Example - Basic From Existing Markup
    Large sized 12.1” TFT color LCD display
    Large-sized high visibility display with various display functions. Real time/Historical trend screen, Bar-graph screen, Data screen are selectable for various applications.
    Combination display for selected 4 screens is available. It is easy to switch to individual screen by touching panel.
    Large capacity of data memory and various recording method
    Compact flash card (CF card) slot is equipped as standard external memory. Large capacity storage of maximum 2GB is available.
    Various data storing methods are selectable such as schedule programming by time of day and time of date, recording start-up by external signal and event, and data logging of before and after trigger points for alarm.
    Multi points recording with high speed/high accuracy
    High-speed recording of approximately 100ms for 48 points and high accuracy of ±0.1% were realized. Stable measuring and recording are possible with high speed.
    High withstand voltage of 1000V AC between input channels.
    Easy operating and programming without manuals
    Easy operating by dedicated keys for each function and touch panel.
    USB port is prepared in front compartment. Setting file and data file are stored in USB memory stick.
    LAN network capability
    Various networked environment such as remote monitoring by browser, FTP server, FTP client and E-mail notification are applied as Ethernet is equipped as standard.
    Analyzing/data acquisition application software
    It is easy to replay and edit the recorded data file. Replay display has functions of vertical/horizontal trend, circular trend, and also wave-analyzing and marking by using the cursor.
    Model Measuring points/sampling rate
    KR3120-N0A 12points/100ms
    KR3140-N0A 24points/100ms
    KR3160-N0A 36points/100ms
    KR3180-N0A 48points/100ms
    INPUT SPECIFICATIONS
    Measuring points 12 points, 24 points, 36 points and 48 points
    Input types Universal
    DC voltage: ±13.8mV, ±27.6mV, ±69.0mV, ±200mV, ±500mV, ±2V, ±5V*, ±10V*, ±20V*, ±50V*
    (*with built-in voltage divider)
    DC current: With external shunt resistor (sold separately)
    Thermocouple: B, R, S, K, E, J, T, N, PtRh40-PtRh20, W-WRe26, WRe5-WRe26, PlatinelⅡ, NiMo-Ni, CR-AuFe, U, L
    Resistance thermometer: Pt100, JPt100, Pt50, Pt-Co
    Accuracy ratings Refer to the table of measuring range, accuracy ratings and display resolution
    Reference junction compensation accuracy K, E, J, T, N, PlatinelⅡ--- ±0.5ºC or less
    R, S, W-WRe26, WRe5-WRe26, NiMo-Ni, CR-AuFe, U, L --- ±1.0 ºC or less
    Sampling rate 100ms: Approximately 100ms for all points
    1s: Approximately 300ms for all points
    Burnout Disconnection of input signal is detected on thermocouple and resistance thermometer input. UP/DOWN/DISABLE is selectable for each input
    Scaling Range/scale is selectable when DC voltage/current is programmed
    Digital filter FIR filter
    Allowable signal source resistance Thermocouple input (burnout disable)/DC voltage input (±2V or less) --- 1kΩ or less
    DC voltage input (±5V or more) --- 100Ω or less
    Resistance thermometer --- Per wire 10Ω or less(same resistance for 3 wires)
    Input resistance DC voltage, thermocouple input --- Approximately 1 MΩ
    Maximum input voltage DC voltage input (±2V or less)/thermocouple input (burnout disable) --- ±10VDC
    DC voltage input (±5V to ±50V) --- ±60VDC
    Dielectric strength between channels 1000V AC or more between each channel (High strength semiconductor relay used)
    (B terminal of resistance thermometer is shorted inside between channels.)
    Common mode rejection ratio 120dB
    Series mode rejection ratio 50dB
    RECORDING SPECIFICATIONS
    Memory for history 136MB
    Additional memory CF card (Up to 2GB)
    Recording cycle 100, 200, 500ms
    1, 2, 3, 5, 10, 15, 20, 30s
    1, 2, 3, 5, 10, 15, 20, 30, 60min
    Logging data Measured data --- File name (group name), time of day, month and year of recording start, tag, measured data, alarm status/types, makertext
    Setting parameter
    Storing types Binary/CSV type
    Storing methods Manual start/stop (dedicated key operation)
    Schedule (designation for time of day and date)
    Trigger signal (alarm event, digital input)Data logging of before and after trigger points
    * Pre-trigger is selectableMeasuring numbers of pre-trigger --- Max 950 data
    Recording group 6 groups of 56 points/group can be programmed (Up to Total of 128 points)
    ALARM SPECIFICATIONS
    Setups Up to 4 alarms can be programmed per channel
    Alarm types Upper limit, lower limit, differential upper limit, differential lower limit (deadband is selectable), abnormal data
    Delay function Setup range of alarm delay --- 1 to 3600 seconds
    Alarm settings AND/OR selectable
    Alarm outputs Refer to option specification
    DISPLAY SPECIFICATIONS
    Display 12.1” TFT color LCD
    Display types Measured data display
    (Trend screen, Data screen, Bar-graph screen)
    Historical trend display(simultaneous display with Real-time trend is available)
    Information display(alarm display, marker list, file list)
    Setting screen(alarm, computation, memory, system, maintenance, communication, etc.)
    Trend screen 48 colors selectableDisplay screen--- 6 screens (6 groups)
    Display points --- Maximum 56 points/screen
    Time axis direction --- Vertical or horizonta
    lLine width --- 1 to 5 dot selectable
    Scale display --- 4 scales
    Tag/data display --- Show/hide selectableMarker display
    Data screen Display screen --- 6 screens (6 groups)
    Display points --- Maximum 56 points/screen
    Display contents --- Measured value, channel/tag, unit, alarm status
    Bargraph screen 48 colors selectable
    Display screen --- 6 screens (6 groups)
    Display points --- Maximum 56 points/screen
    Display direction --- Vertical or horizontal
    Scale display --- 1 scale
    Information display Alarm display (alarm activation/released history display)
    Marker list
    File list (group data file list display)
    Unit information (Model, serial no., option, etc.)
    LCD back light Auto/manual OFF function
    Brightness --- 4 levels adjustment
    COMMUNICATION FUNCTIONS
    Communication type Ethernet (10BASE-T/100BASE-TX)
    FTP server Data file can be read from the network computer
    FTP client Transfer a data file to a network server
    SNTP client The time can be synchronized to the time of SNTP server
    Web server Conformed to HTTP1.0 --- Display the alarm, information of maintenanceby browser software (InternetExplorer5.0 or later, NetScape6.0 or later, Opera7 or later)
    E-Mail E-Mail notification at specified time for alarm activation
    Report data at specified time is selectable from all registered dataNotification address --- Maximum 8 contacts
    Communication type USB2.0 (full speed), host function
    USB memory stick is used as external memory (Some USB memory stick can not be used.)
    PROGRAMING/OPERATION
    Operation method Touch panel/dedicated key
    Operation keys HOME, MENU, DISP, MARKER, SCROLL, CURSOR, START, STOP, DIRECTION keys, ENTER, ESC
    HOME settings Simple recording settings --- Common setting to all channelsParameter programming for all channels together, recording cycle, selection settings
    MENU settings Input/computation programming --- Input parameter, computation parameter
    DISP Settings --- Data channel parameter, group parameter, common parameter (combination display, trend vertical/horizontal)
    Alarm settings File settings (6 individual files) --- Storing method settings Marker text settings
    System settings --- Communication, clock, maintenance, key lock, password, screen, etc.
    DISP operations Operating screen selection --- Trend, data, bar-graph, historical trend, alarm display, maker list
    Display selection on each screen --- Group 1 to 6 selectable
    GENERAL SPECIFICATIONS
    Rated power voltage 100 to 240V AC (universal power supply) 50/60Hz
    Maximum power consumption 65VA
    Reference operating condition Ambient temperature --- 21 to 25ºC,
    Ambient humidity --- 45 to 65%RH
    Power voltage --- 100V AC±1.0%
    Power frequency --- 50/60Hz±0.5%
    Attitude --- Left/right 0°, forward/backward 0°
    Warm-up time --- Longer than 30 minutes
    Normal operating condition Ambient temperature --- 0 to 50ºC
    Ambient humidity --- 20 to 80%RH
    Power voltage --- 90 to 264V AC
    Power frequency --- 50/60Hz±2%
    Attitude --- left/right 0°, forward tilting 0°,
    backward tilting 0° to 20°
    Transport condition (at the packed condition on shipment from our factory) Ambient temperature --- -20 to 60 ºC
    Ambient humidity --- 5 to 90%RH (No dew condensation)
    Vibration --- 10 to 60Hz 4.9m/ S2 (0.5G) or less
    Impact --- 392m/S2 (40G) or less
    Storage condition Ambient temperature --- -20 to 60ºC
    Ambient humidity --- 5 to 90%RH (No dew condensation)
    Power failure protection Setups and data are backed up by flash memory.
    Clock:Lithium battery backs up RAM
    (Minimum 5 years)
    Insulation resistance Secondary terminals and protective conductor terminals ---20MΩ or more at 500V DC
    Primary terminals and protective conductor terminals --- 20MΩor more at 500V DC
    Primary and secondary terminals ---20MΩ or more at 500V DC
    Primary terminals: power terminals (L,N), alarm output terminals
    Secondry terminals: measuring input terminals, digital input terminals, communications terminals
    Dielectric strength Secondary terminals and protective conductor terminals ---1 minute at 500V AC
    Primary terminals and protective conductor terminals ---1 minute at 1500V AC
    Primary and secondary terminals --- 1 minute at 2300V AC
    Primary terminals:power terminals (L,N), alarm output tereminals Secondry terminals: measuring input terminals, digital input terminals communications terminals
    Case assembly material Front bezel --- ABS resin
    Case --- Steel
    Color Front bezel --- Black (equivalent to Mussel N3.0)
    Case --- Painting color, gray (equivalent to Mussel N7.0)
    Weight 7.2kg
    Mounting Panel mounting
    Terminal screws Power terminals/protective conductor terminals/communications terminals --- M4.0
    Measuring input terminals/alarm output terminals/digital input terminals --- M3.5
    Real-time trend screen
    Displays data (measured and virtual) of selected group. Vertical trend and horizontal trend selectable.
    Real-time trend screen
    Bar-graph screen
    Displays data (measured and virtual) of selected group. Combination display with real-time trend is available.
    Bar-graph screen

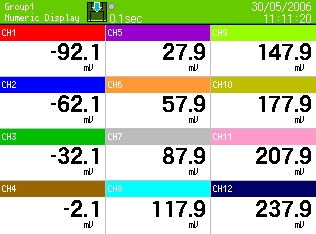

    Data screen
    Displays data (measured and virtual) of selected group. Simultaneous display of alarm status.
    Data screen
    Dual trend screen
    2 split display for real-time trend and historical trend. Scroll available for historical trend.
    Dual trend screen
    Information screen
    Information screen
    HOME setting screen
    HOME setting screen
    Channel setting screen
    Channel setting screen
    Schedule setting screen
    Schedule setting screen
